Industrial laser system

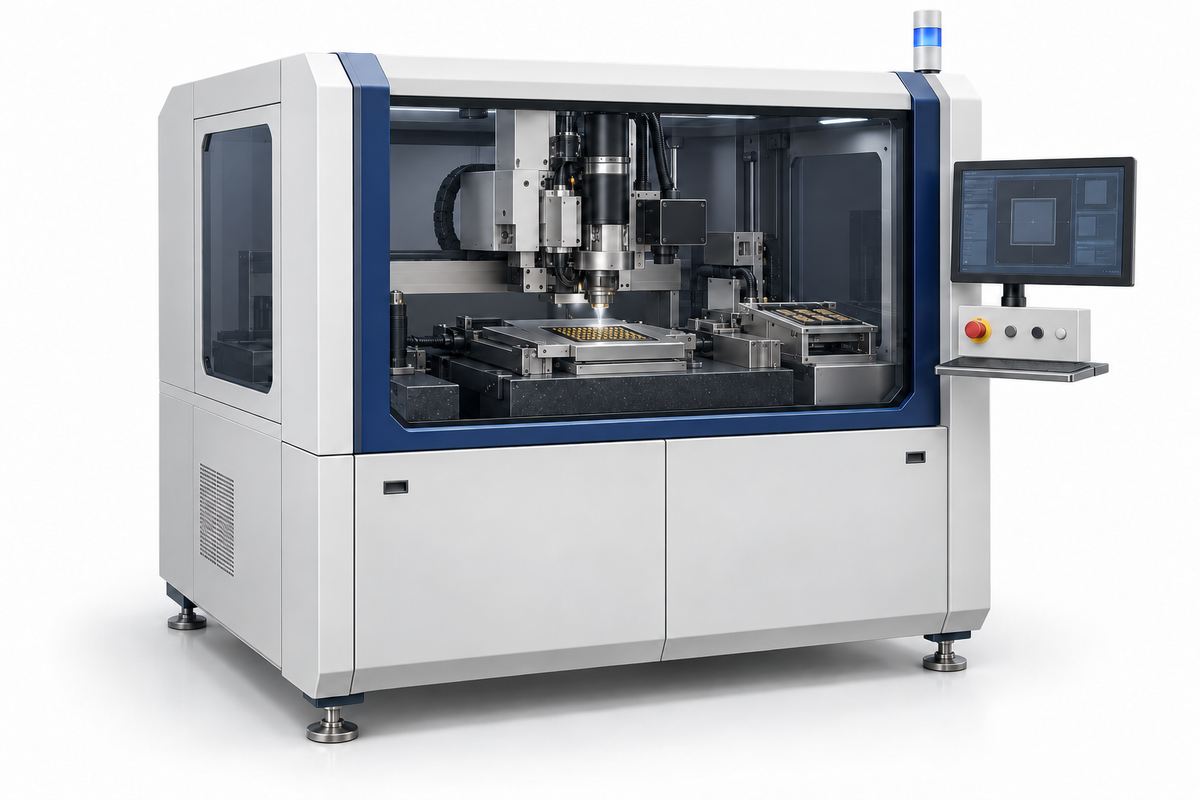

Semiconductor Laser-Assisted Bonding LAB System
The AOGEO laser-assisted bonding system uses localized laser heating to support connections between semiconductor dies and substrates. Alignment, contact conditions and thermal exposure are coordinated around the bump...
✓Process review
✓Sample testing
✓Automation configuration
Process and acceptance details
Semiconductor Laser-Assisted Bonding LAB System
The AOGEO laser-assisted bonding system uses localized laser heating to support connections between semiconductor dies and substrates. Alignment, contact conditions and thermal exposure are coordinated around the bump, solder and interface materials. The equipment serves flip-chip and applicable advanced-packaging interconnect operations through the specified bonding or solder-reflow route.
- Applications: Deliver selective heating to positioned dies, bump arrays and substrate contacts so that the designed joining process takes place at the required interface. Coordinate the bonded assembly with subsequent inspection and underfill operations.
- Process inputs and outputs: Inputs include dies and substrates with documented bump geometry, solder composition, surface metallization and assembly gaps. Outputs are connected assemblies with position, thermal-process and inspection records.
- Configuration discussion: Select the laser, beam shaping and exposure arrangement according to optical access and absorption. Plan vision alignment, die holding, substrate support and temperature monitoring, with force control where required by the chosen bonding route.
- Quality and acceptance: Check placement error, joint formation, opens, shorts, voids and assembly warpage. Use resistance measurements, shear or pull tests, cross-sections and agreed environmental testing to assess connections and thermal effects on nearby dies and organic materials.
- RFQ information: Provide die and substrate drawings, bump and solder details, metallization stacks, allowed thermal profiles and assembly-support conditions. Include representative assemblies, inspection methods, data-interface needs and the planned downstream sequence.
Explore semiconductor laser interconnect applications or submit your LAB bonding requirements.
