Wafer Laser Resistor and Functional Trimming System

The AOGEO wafer laser trimming system combines localized laser removal with electrical measurement to adjust designed resistor regions or trim links. Resistance or circuit response provides feedback for controlled pro...

Process review Sample testing Automation configuration

Process and acceptance details

Wafer Laser Resistor and Functional Trimming System

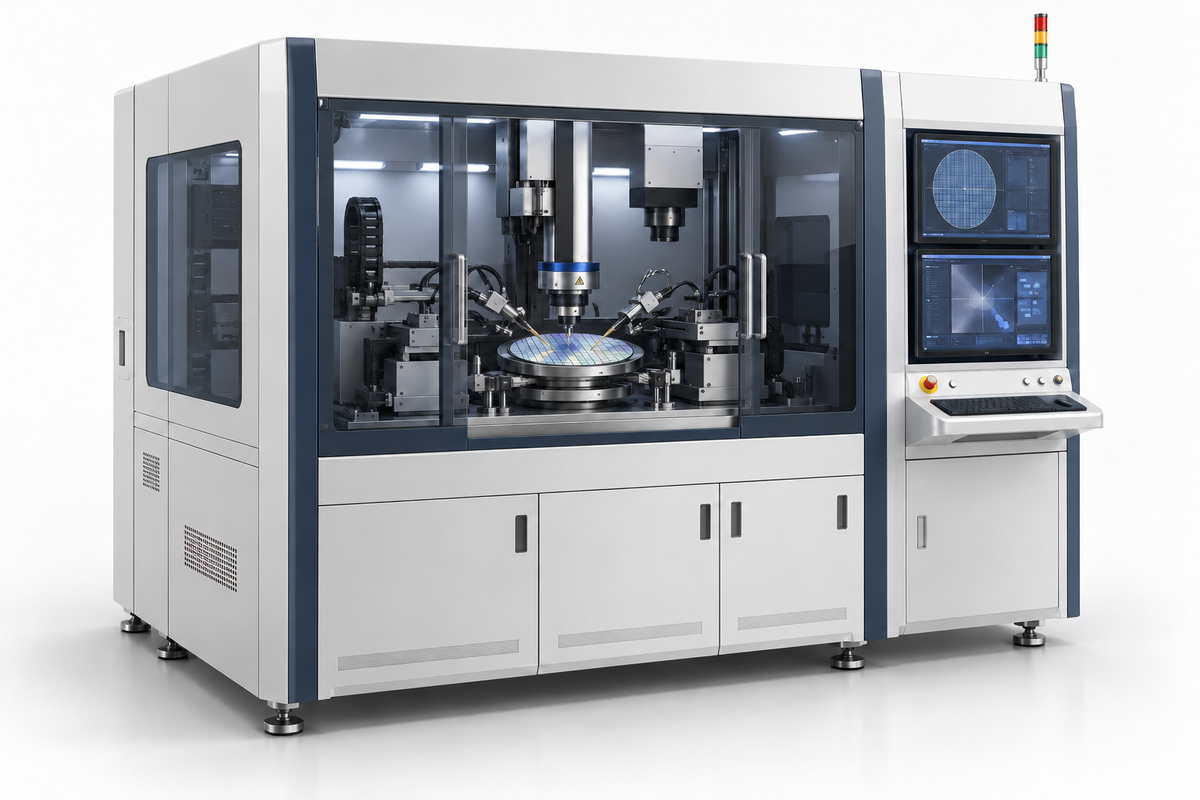

The AOGEO wafer laser trimming system combines localized laser removal with electrical measurement to adjust designed resistor regions or trim links. Resistance or circuit response provides feedback for controlled processing. The operation connects wafer testing, parameter adjustment and verification through position-specific processing and measurement records.

  • Applications: Trim thin-film resistor networks, accessible links and functional parameters in analog or sensor circuits that incorporate suitable trim structures. Define cut patterns, stop conditions and protected regions from the device design and measurement objective.
  • Process inputs and outputs: Inputs include device wafers with documented resistor or trim-link layouts, probe pads, coordinate maps and target electrical parameters. Outputs are adjusted wafers, processing-location maps and measurements recorded before and after each defined adjustment.
  • Configuration discussion: Coordinate laser wavelength, pulse delivery, focus, vision alignment and wafer motion with probe contact and the measurement circuit. Discuss feedback decisions, binning, reject handling, particle extraction and production-data interfaces.
  • Quality and acceptance: Check target-parameter deviation, stability after trimming, cut geometry, residue, neighboring structures and passivation condition. Repeat measurements at agreed temperature, bias or environmental conditions, and verify the measurement system together with trim-stop rules.
  • RFQ information: Supply the trimmable structure layout, material stack, electrical operating principle and target window. Include probe arrangements, allowed processing regions, protection requirements, representative samples, test programs and traceability rules.

Explore semiconductor laser processing stages or submit your wafer-trimming information.
